| Cat. No. |
Specification |
| 2620/P |

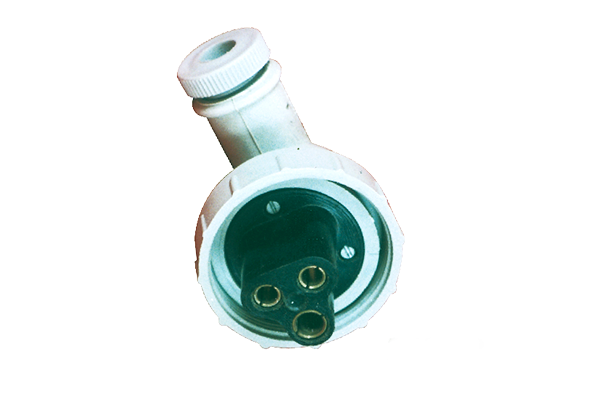

10A. 250V. 3 pin elbow type side entry plastic body plug top with bakelite insertion with brass contact pipe. Plug with locking nut. |
| 2621/P |
---do--- top entry. |
| |
|
| |
|
|
| |
 |
| 2621/P & 2620/P |
|
| |
|
|
|
| |
| |
|
| Cat. No. |
Specification |
| 2622/S |

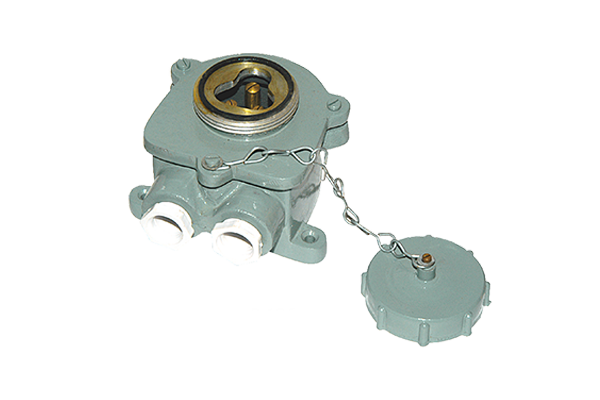

Water tight and weatherproof. 10A. 250V. 3 pin cast Aluminium body receptacles with locking cap with chain. Bakelite insertion with brass pins. 2 nos. cable entries with plastic cable glands. SS hardware. |
| |
|
| |
|
|
| |
| |
 |
| 2622/S |
| |
|
|
|
| |
| |
|
| Cat. No. |
Specification |
| 2623/SS |

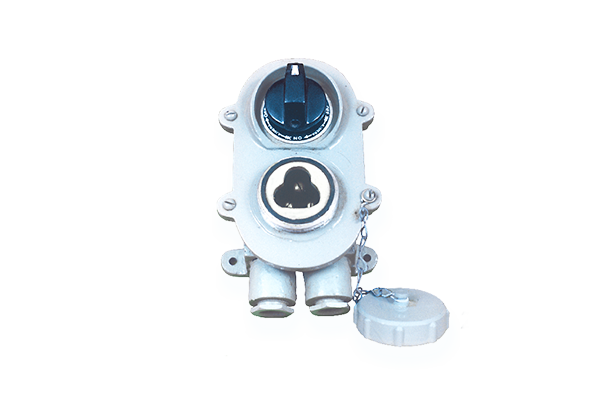

--do-- with suitable 10A. Double pole rotary switch. Bakelite knob for On/Off. |
| |
|
| |
|
|
| |
| |
 |
| 2623/SS |
| |
|
|
|
| |
| |
|
| Cat. No. |
Specification |
| 2626 |

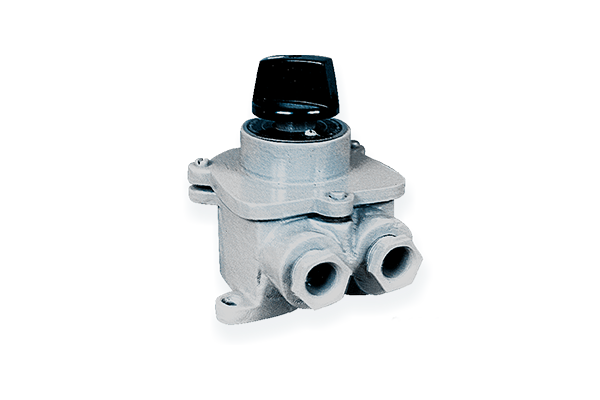

10A. 250V. double pole rotary switch with cast Aluminium body bakelite knob for On/Off. 2 nos. Cable entries with plastic cable glands. |
| |
|
| Note |
Above items can also be used, in 24V & 110V |
| |
|
| |
|
|
| |
| |
 |
| 2626 |
|
|
|
